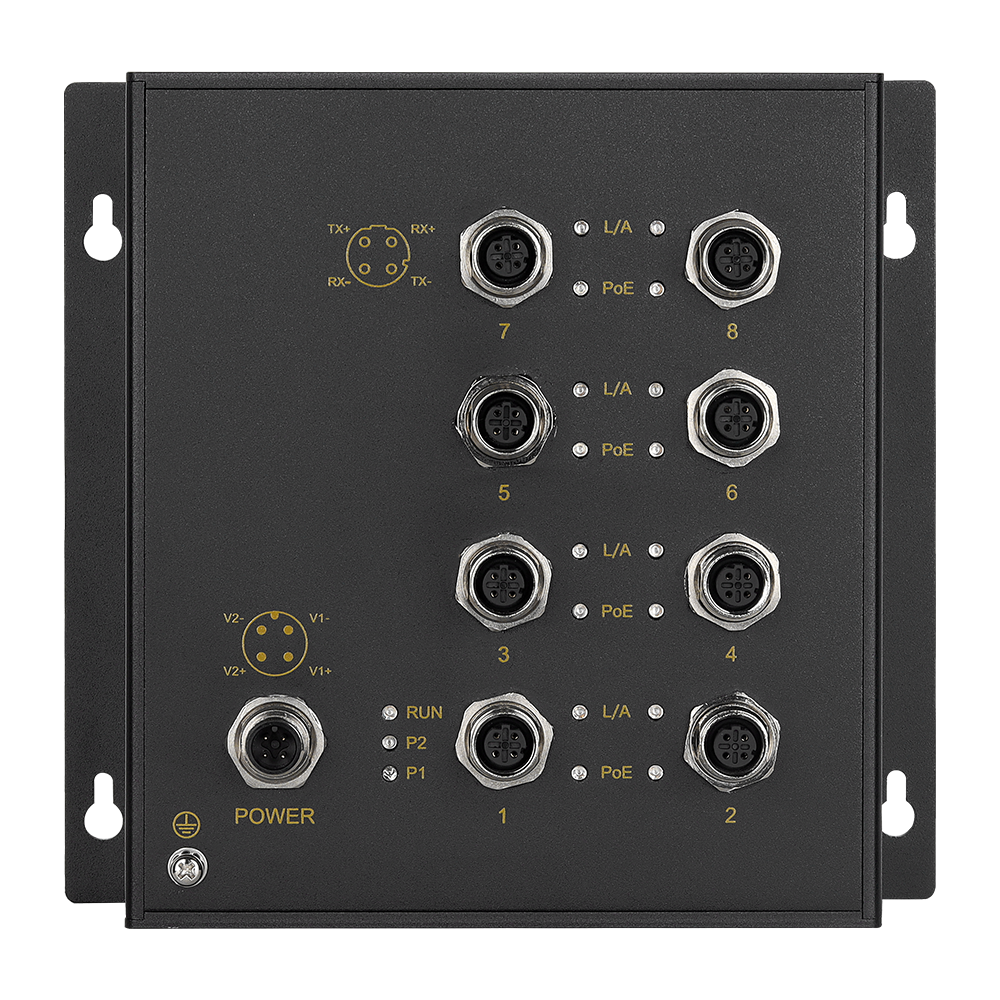

8 x 100M M12 Ports Layer 2 Unmanaged POE Wall Mount Industrial Ethernet Switch
Admas2208P-M12-8TPoE is an unmanaged layer 2 100M PoE wall mount industrial Ethernet switch. It supports 8 100M PoE copper ports that adhere to IEEE 802.3af/at standards. It provides power to standard PD (Powered Devices) devices through the Ethernet cables without disrupting the normal transmission of network data, saving power wiring costs.
All interfaces use M12 connector, meeting the requirements of the rail transit industry standards, ensuring a secure and sturdy connection suitable for environments with strong vibrations. This product is mainly designed for plug-and-play simplicity. Each gigabit port supports 10/100Mbps auto-negotiation, full or half-duplex modes, and automatic MDI/MDI-X connection. It provides robust support for industrial automation, making industrial communication smoother, more reliable, and faster, meeting the continuous innovation demands of customers for improving value-added applications.
The product uses industrial-grade components, wall-mounted installation, a high-strength metal casing for durability, and a fanless design for heat dissipation. It can operate in a wide temperature range from -40°C to +70°C and features high-standard industrial protection, making it adaptable to various harsh working environments with stable communication performance. This product can be widely used in industrial automation, integrated energy, smart cities, intelligent transportation, smart factories, and other industrial fields.
| Specification | |
| Switching | |
| Processing Type | Store-and-Forward |
| Backplane Bandwidth | 5.6Gbps |
| Buffer Size | 4Mbit |
| MAC Table Size | 8K |
| Interface | |
| 100M PoE Port | 8*10/100Base-T(X) auto sensing PoE ports, using M12 (D-Code 4-Pin Female) connector, supporting full/half-duplex and auto MDI/MDI-X. PoE power supply complies with IEEE 802.3af/at standards, with a maximum output power of 30W per PoE port |
| Status LED | Power indicator, Operation indicator, PoE indicator, Interface indicator |
| Power Supply | |
| Input Voltage | DC18~36V |
| Power Consumption | ＜5W@DC24V(without PD), with a max. overall PoE output of 60 watts |
| Connection | M12(A-Code 4-Pin Male)connector |
| Physical Characteristics | |
| Dimensions | 180x170x64.5 mm (connectors included) |
| Installations | Wall Mount |
| IP Code | IP40 |
| Weight | 1.1kg |
| Working Environment | |
| Operating Temp | -40℃~+70℃ |
| Storage Temp | -40℃~+85℃ |
| Relative Humidity | 5%~95% (non-condensing) |
| Industry Standard | |
| EMC | IEC 61000-4-2(ESD): Level 3 IEC 61000-4-5(Surge): Level 3 IEC 61000-4-4(EFT): Level 3 |
| Certification | CE, FCC, RoHS |
| datasheet | ||
|---|---|---|
| Admas2208P-M12-8TPOE-Datasheet-V2.1-231228 | Admas2208P-M12-8TPOE-Datasheet-V2.1-231228 | v2.1` |
| Standard Model | 10/100M PoE Port | Input Voltage |
| Admas2208P-M12-8TPoE-DC24 | 8 | DC18~36V |
